Micsig OP2000-5 Punta SigOFIT (2000X / 500 MHz)
799 €
966,79 € IVA INCLUIDO

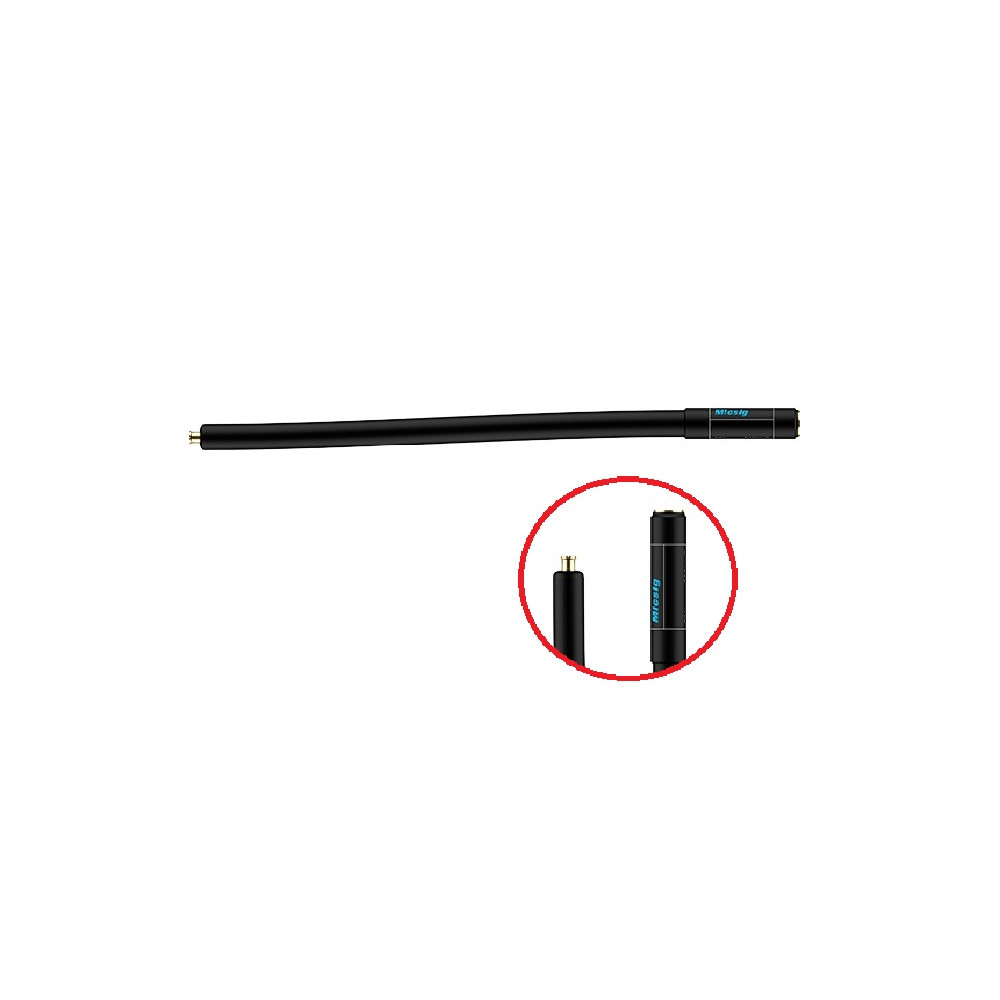

Punta atenuadora 2000X / 500 MHz para sondas de fibra óptica Micsig SIGOFIT.
Punta de sonda de atenuación 2000X, ancho de banda de 500 MHz, y rango de tensión de ±1000V para sondas de fibra óptica Micsig SIGOFIT.
Precaución: Seleccione el atenuador adecuado para la medición a fin de evitar daños en el convertidor electroóptico o una degradación del rendimiento debido a una sobretensión. Seleccione la punta atenuadora con la menor relación de atenuación permitida por el rango de la señal probada.
El atenuador debe seleccionarse en función de la tensión pico (o tensión rms) de la señal bajo prueba. Consulte las especificaciones técnicas para seleccionar el atenuador adecuado.
|
SigOFIT model |
Attening Tip model |
Adapter type |
Attenuation ratio |
Voltage range |
Non- destructive voltage (Max.) |
Input impedance |
|
MOIP100P & MOIP200P |
OP10-2 |
MMCX |
10:1 @0dB |
±12.5V |
1000Vpp |
3.75MΩ || 6pF |
|
1:1 @20dB |
±1.25V |
|||||
|
OP20-2 |
MMCX |
20:1 @0dB |
±25V |
1000Vpp |
4.47MΩ || 4pF |
|
|
2:1 @20dB |
±2.5V |
|||||
|
OP50-2 |
MMCX |
50:1 @0dB |
±62.5V |
1000Vpp |
4.19MΩ || 2pF |
|
|
5:1 @20dB |
±6.25V |
|||||
|
OP100-2 |
MMCX |
100:1 @0dB |
±125V |
1000Vpp |
4.10MΩ || 2pF |
|
|
10:1 @20dB |
±12.5V |
|||||
|
OP200-2 |
MCX |
200:1 @0dB |
±250V |
2500Vpp |
9.03MΩ || 2pF |
|
|
20:1 @20dB |
±25V |
|||||
|
OP500-2 |
MCX |
500:1 @0dB |
±625V |
2500Vpp |
20.98MΩ || 1pF |
|
|
50:1 @20dB |
±62.5V |
|||||
|
OP1000-2 |
MCX |
1000:1 @0dB |
±1250V |
2500Vpp |
20.94MΩ || 1pF |
|
|
100:1 @20dB |
±125V |
|||||
|
OP2000-2 |
MCX |
2000:1 @0dB |
±2500V |
2500Vpp |
20.52MΩ || 1pF |
|
|
200:1 @20dB |
±250V |
|||||
|
OP5000-2 |
LCX |
5000:1 @0dB |
±6250V |
8000Vpp |
40.82MΩ|| 2.4pF |
|
|
500:1 @20dB |
±625V |
|||||
|
MOIP350P |
OP10-3 |
MMCX |
10:1 @0dB |
±12.5V |
1000Vpp |
3.75MΩ || 6pF |
|
1:1 @20dB |
±1.25V |
|||||
|
OP20-3 |
MMCX |
20:1 @0dB |
±25V |
1000Vpp |
4.47MΩ || 4pF |
|
|
2:1 @20dB |
±2.5V |
|||||
|
OP50-3 |
MMCX |
50:1 @0dB |
±62.5V |
1000Vpp |
4.19MΩ || 2pF |
|
|
5:1 @20dB |
±6.25V |
|||||
|
OP100-3 |
MMCX |
100:1 @0dB |
±125V |
1000Vpp |
4.10MΩ || 2pF |
|
|
10:1 @20dB |
±12.5V |
|||||
|
OP200-3 |
MCX |
200:1 @0dB |
±250V |
2500Vpp |
9.03MΩ || 2pF |
|
|
20:1 @20dB |
±25V |
|||||
|
OP500-3 |
MCX |
500:1 @0dB |
±625V |
2500Vpp |
20.98MΩ || 1pF |
|
|
50:1 @20dB |
±62.5V |
|||||
|
OP1000-3 |
MCX |
1000:1 @0dB |
±1250V |
2500Vpp |
20.94MΩ || 1pF |
|
|
100:1 @20dB |
±125V |
|||||
|
OP2000-3 |
MCX |
2000:1 @0dB |
±2500V |
2500Vpp |
20.52MΩ || 1pF |
|
|
200:1 @20dB |
±250V |
|||||
|
OP5000-3 |
LCX |
5000:1 @0dB |
±6250V |
8000Vpp |
40.82MΩ|| 2.4pF |
|
|
500:1 @20dB |
±625V |
|||||
|
MOIP500P |
OP10-5 |
MMCX |
10:1 @0dB |
±5V |
1000Vpp |
3.75MΩ || 6pF |
|
1:1 @20dB |
±0.5V |
|||||
|
OP20-5 |
MMCX |
20:1 @0dB |
±10V |
1000Vpp |
4.47MΩ || 4pF |
|
|
2:1 @20dB |
±1V |
|
MOIP500P |
OP50-5 |
MMCX |
50:1 @0dB |
±25V |
1000Vpp |
4.19MΩ || 2pF |
|
5:1 @20dB |
±2.5V |
|||||
|
OP100-5 |
MMCX |
100:1 @0dB |
±50V |
1000Vpp |
4.10MΩ || 2pF |
|
|
10:1 @20dB |
±5V |
|||||
|
OP200-5 |
MCX |
200:1 @0dB |
±100V |
2500Vpp |
9.03MΩ || 2pF |
|
|
20:1 @20dB |
±10V |
|||||
|
OP500-5 |
MCX |
500:1 @0dB |
±250V |
2500Vpp |
20.98MΩ || 1pF |
|
|
50:1 @20dB |
±25V |
|||||
|
OP1000-5 |
MCX |
1000:1 @0dB |
±500V |
2500Vpp |
20.94MΩ || 1pF |
|
|
100:1 @20dB |
±50V |
|||||
|
OP2000-5 |
MCX |
2000:1 @0dB |
±1000V |
2500Vpp |
20.52MΩ || 1pF |
|
|
200:1 @20dB |
±100V |
|||||
|
OP5000-5 |
MCX |
5000:1 @0dB |
±2500V |
3600Vpp |
40.92MΩ || 1pF |
|
|
500:1 @20dB |
±250V |
|||||
|
OP10000-5 |
LCX |
10000:1 @0dB |
±5000V |
8000Vpp |
40.82MΩ|| 2.4pF |
|
|
1000:1 @20dB |
±500V |
|||||
|
MOIP800P & MOIP1000P |
OP10-1G |
MMCX |
10:1 @0dB |
±5V |
1000Vpp |
3.75MΩ || 6pF |
|
1:1 @20dB |
±0.5V |
|||||
|
OP20-1G |
MMCX |
20:1 @0dB |
±10V |
1000Vpp |
4.47MΩ || 4pF |
|
|
2:1 @20dB |
±1V |
|||||
|
OP50-1G |
MMCX |
50:1 @0dB |
±25V |
1000Vpp |
4.19MΩ || 2pF |
|
|
5:1 @20dB |
±2.5V |
|||||
|
OP100-1G |
MMCX |
100:1 @0dB |
±50V |
1000Vpp |
4.10MΩ || 2pF |
|
|
10:1 @20dB |
±5V |
|||||
|
OP200-1G |
MCX |
200:1 @0dB |
±100V |
2500Vpp |
9.03MΩ || 2pF |
|
|
20:1 @20dB |
±10V |
|||||
|
OP500-1G |
MCX |
500:1 @0dB |
±250V |
2500Vpp |
20.98MΩ || 1pF |
|
|
50:1 @20dB |
±25V |
|||||
|
OP1000-1G |
MCX |
1000:1 @0dB |
±500V |
2500Vpp |
20.94MΩ || 1pF |
|
|
100:1 @20dB |
±50V |
|||||
|
OP2000-1G |
MCX |
2000:1 @0dB |
±1000V |
2500Vpp |
20.52MΩ || 1pF |
|
|
200:1 @20dB |
±100V |
|||||
|
OP5000-1G |
MCX |
5000:1 @0dB |
±2500V |
3600Vpp |
40.92MΩ || 1pF |
|
|
500:1 @20dB |
±250V |
|||||
|
OP10000-1G |
LCX |
10000:1 @0dB |
±5000V |
8000Vpp |
40.82MΩ|| 2.4pF |
|
|
1000:1 @20dB |
±500V |
Adapters and coaxial lead
|
Accessory name |
Withstand voltage range |
|
MMCX-adapter |
＜300 Vpp |
|
MCX-adapter |
＜3000 Vpp |
|
MMCX coaxial lead |
＜300 Vpp |
|
MCX coaxial lead |
＜3000 Vpp |
|
LCX coaxial lead |
＜8000 Vpp |
